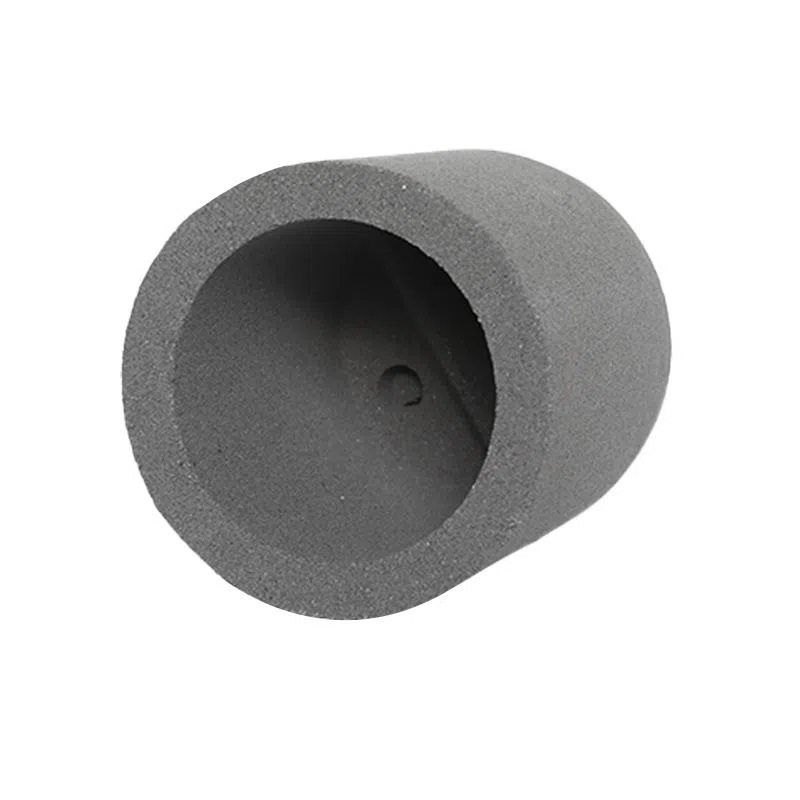

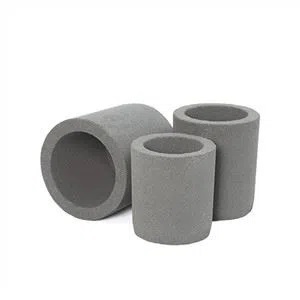

XP riser sleeves have the characters of low weight, good permeability and versatility, with a variety of geometry and variants.They are available with flexible formulation and can meet the needs of most of the customers.
1.Benefits of XP Riser Sleeves:
◎ XP Riser Sleeves have good air permeability and can be applied to most clay sand and resin sand molding conditions;
◎ The variants of XP riser sleeves are convenient for production, and are widely used in in-line working conditions of shell casting such as turbine castings;
◎ The variants of XP riser sleeves can be placed flexibly, which can effectively solve the situation of limited position of ball castings.
2. Flexible formulations and processes:
1. XP riser sleeves can be produced by high-quality float beads and exothermic agent formulation;
2. XPL riser sleeves with precise dimensions can be produced by the cold core process;
3. XPD riser sleeves can be produced by the low gassing process with precise dimensions;
4. XPF riser sleeves can be produced by the fluorine-free formulation for high-end hydraulic parts;
5. XPC riser sleeves can be produced by carbon-free and low-carbon formulation for stainless steel castings;
6. BP exothermic and insulating riser sleeves can be produced by the negative pressure suction filtration process;
7. XPX/BPX riser sleeves are available for inverse mold and external directly insertable for shell casting ;
3. Rich spare parts:
1. Standard P sand breaker core;
2. Provide HJ metal breaker core for special needs;
4.Packaging, transportation and storage:
Keep the package intact, store in a cool and dry place, prevent moisture absorption, and keep away from open flames;
Prohibit the use of water for fire fighting;
General parameter table (length unit is mm)
model | modulus | H | D | D1 | d | Packaging Specifications |
XP/BP-2/5 | 0.7 | 50 | 40.5 | 38 | 24.5 | 24000 |
XP/BP-3.5/5 | 1.0 | 49 | 53 | 50 | 36 | 11550 |
XP/BP-4/6 | 1.1 | 65 | 56 | 54 | 38 | 7000 |
XP/BP-4/7 | 1.2 | 71.5 | 62.5 | 59 | 41.5 | 5400 |
XP/BP-5/8 | 1.5 | 80 | 73.5 | 70 | 52 | 3800 |
XP/BP-6/9 | 1.7 | 91 | 80 | 75 | 57.5 | 2800 |
XP/BP-7/10 | 2.0 | 99 | 94 | 90 | 70 | 1800 |
XP/BP-8/11 | 2.25 | 108 | 102 | 99 | 79 | 1400 |
XP/BP-9/12 | 2.50 | 120 | 115 | 110 | 89 | 975 |
XP/BP-10/13 | 2.80 | 133 | 127 | 120 | 97 | 840 |
XP/BP-11/14 | 3.00 | 140 | 138 | 130 | 108 | 660 |
XP/BP-12/15 | 3.20 | 150 | 155 | 145 | 118 | 450 |
XP/BP-14/17 | 3.80 | 169 | 180 | 171 | 139 | 270 |
*This table only lists the standard models of this series of risers.With the increase of molds, new models will be added at any time. *Packaging specifications according to1.7Counting the number of risers for the Migao standard tray. |
