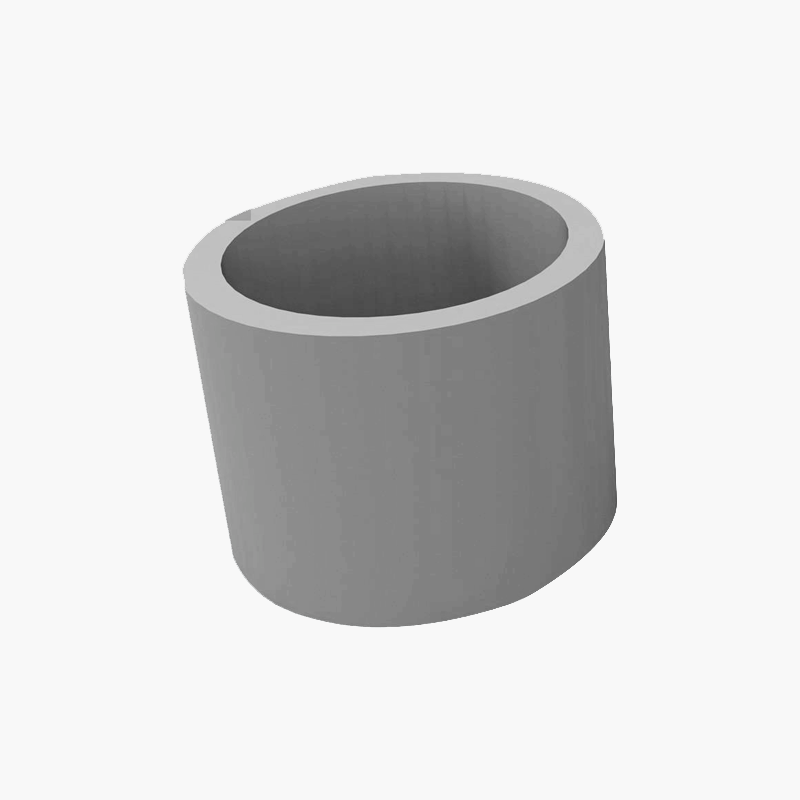

XB thermal insulation risers sleeves have the characters of non exothermic compound, fiber-free, low weight, good air permeability, good thermal insulation property and precise dimension,and they have a high cost performance. Mainly used in non-ferrous casting and special turbine shell casting, especially suitable for aluminum castings.
1.Benefits of XB thermal insulation Riser Sleeves:
◎ XB thermal insulation riser sleeves have good air permeability and can be applied to most modeling lines;
◎ The variants of XB thermal insulation riser sleeves are convenient for production and are widely used in in-line working conditions of shell castings;
◎ XB insulating risers sleeves are all free of exothermic compound, carbon-free and fluorine-free.
2.Flexible formulations and processes:
1. The XB thermal insulation riser can be produced with high-quality low weight thermal insulation materials;
2. The XBL riser sleeves with precision dimension can be produced by cold core process;
3. The XBD riser sleeves with low gassing can be produced by the low gassing volume process;
3. spare parts:
1. Standard P sand breaker core;
2. Provide HJ metal breaker core for special needs;
4, packaging, transportation, storage precautions:
Keep the package intact, store in a cool and dry place, prevent moisture absorption, and keep away from open flames.
Fire-fighting measures: isolate the riser that catches fire, use dry powder fire extinguisher in case of small fire; use foam fire extinguisher in case of large fire, and prohibit the use of water-based fire extinguisher.

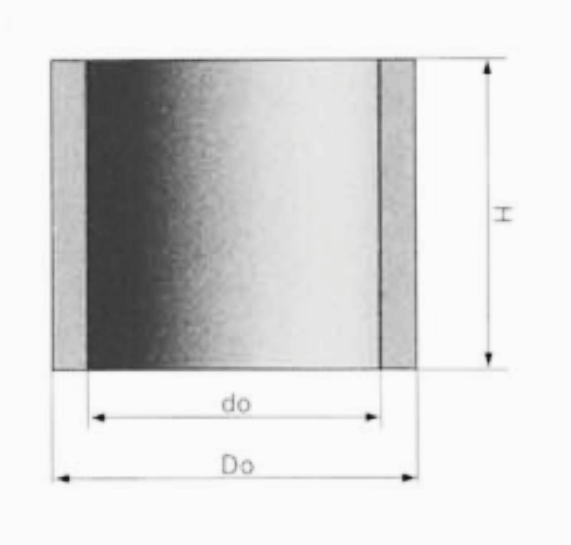

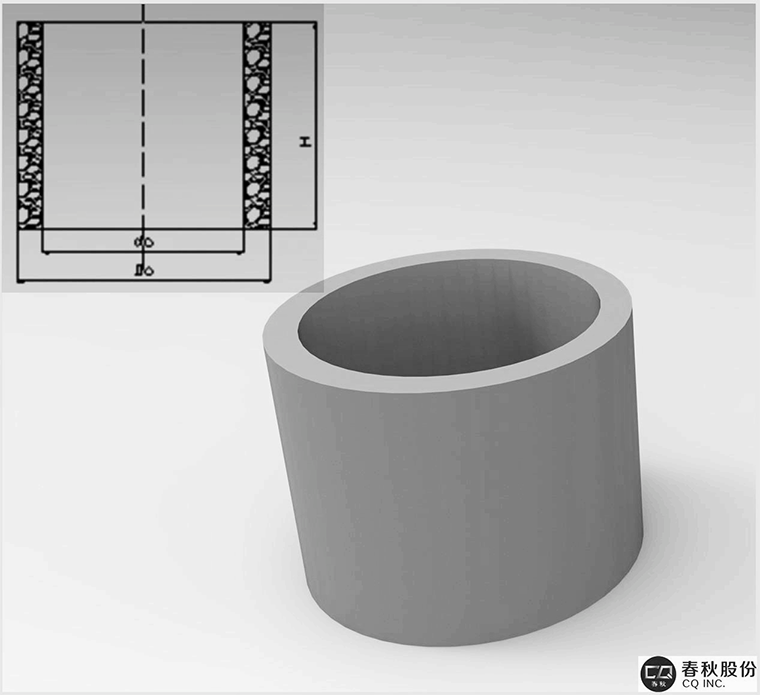

General parameter table (length unit is mm)
model | modulus | H | D | D1 | d | Packaging Specifications |
XB-2/5 | 0.7 | 50 | 40.5 | 38 | 24.5 | 24000 |
XB-3.5/5 | 1.0 | 49 | 53 | 50 | 36 | 11550 |
XB-4/6 | 1.1 | 65 | 56 | 54 | 38 | 7000 |
XB-4/7 | 1.2 | 71.5 | 62.5 | 59 | 41.5 | 5400 |
XB-5/8 | 1.5 | 80 | 73.5 | 70 | 52 | 3800 |
XB-6/9 | 1.7 | 91 | 80 | 75 | 57.5 | 2800 |
XB-7/10 | 2.0 | 99 | 94 | 90 | 70 | 1800 |
XB-8/11 | 2.25 | 108 | 102 | 99 | 79 | 1400 |
XB-9/12 | 2.50 | 120 | 115 | 110 | 89 | 975 |
XB-10/13 | 2.80 | 133 | 127 | 120 | 97 | 840 |
XB-11/14 | 3.00 | 140 | 138 | 130 | 108 | 660 |
XB-12/15 | 3.20 | 150 | 155 | 145 | 118 | 450 |
XB-14/17 | 3.80 | 169 | 180 | 171 | 139 | 270 |
*This table only lists the standard models of this series of risers.With the increase of molds, new models will be added at any time. *Packaging specifications according to1.7Counting the number of risers for the Migao standard tray. |
