P series breaker core

P series sand casting steel / cast iron with easy cutting
This series of easy-cut pieces are mainly suitable for XP/BP type risers, which are used on steel castings and gray iron castings.



Material:
SKU:
Availability:

PDF Export

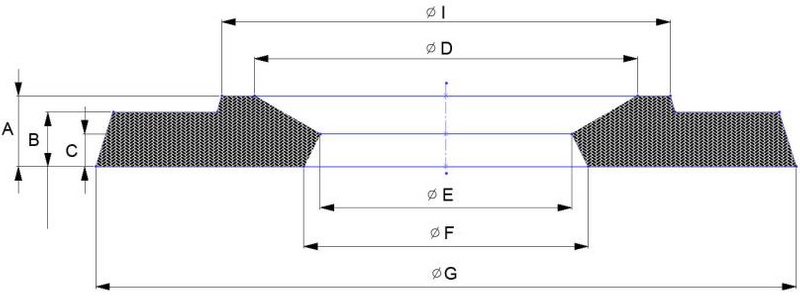

 PG sand breaker core used for steel castings and grey iron castings;

PG sand breaker core mainly suitable for XP/BP series risers, and used for steel castings and gray iron castings.



E series riser easy to cut


PGEasy cut sheet

model/

D1

D2

d1

d2

T

t

N

N1

PG4/7

62.3

62.5

34.5

41.2

11.1

8.2

25

28.2

PG5/8

73.2

73.5

43.5

50.2

11.2

8.3

29.5

34.2

PG6/9

80.3

80.5

48.6

56.7

11.2

8.2

30.2

34.5

PG7/10

94.3

94.2

59.7

69.2

13

9.1

35

40.2

PG8/11

101.8

102.2

69.5

79.2

13.1

9.25

40.25

45.2

PG9/12

114.6

115.2

77

87.8

13

10

44.75

/

PG10/13

127.2

127.2

83.2

96

13.2

11

50.2

56.5

PG11/14

138

138

98

108.2

14

11

55

60

PG12/15

154.5

155

104.5

118

15

12

60

66.5

PG14/17

183

183.5

140

117.5

15.5

13.5

73

80.5



PT sand breaker core used for steel castings and grey iron castings;

PT sand breaker core mainly suitable for XP/BP series risers, and used for steel castings and gray iron castings.


PTEasy cut sheet

model/

D1

D2

d1

d2

T

t

N

N1

PT4/7

62.3

64

34.5

40.5

11.1

8.2

20.1

24.2

PT5/8

73.2

73.5

43.5

51.2

11.2

8.3

23

28

PT6/9

80.3

80.5

48.6

57

11.5

8.3

25.1

31.5

PT7/10

93.5

94.2

58

69

13.4

9.1

27.7

33

PT8/11

101.4

102.5

68.5

80

13

10

30

36.5

PT9/12

115

115.5

75.5

88.5

13

10

32.8

40.5

PT10/13

128

128.5

83.2

97

13.2

11.2

35.5

42

PT11/14

143.5

144

96.5

108

13.5

11.2

38

45.5

PT12/15

154.5

155

104.5

118

15

12

40

50

PT14/17

183

184

130.5

129.5

14.5

10.5

45.5

53.5

PT80/160

160.5

161.5

110

/

14.5

/

82

90.5

PT90/180

180

180.5

120.5

/

15.5

/

92

111.5

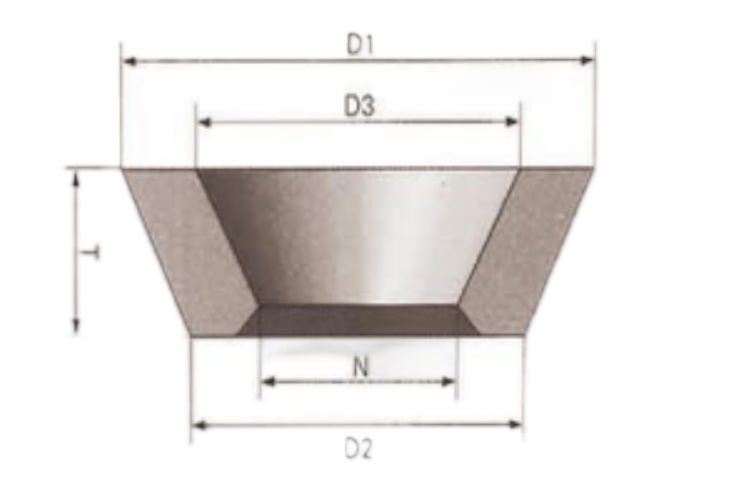

PZ sand breaker core used for steel castings and grey iron castings;

PZ sand breaker core is mainly suitable for HD/XD high exothermic risers, used on non-high pressure molding lines and resin sand. Compared with metal breaker core, it has better thermal insulation property.



E series riser easy to cut
