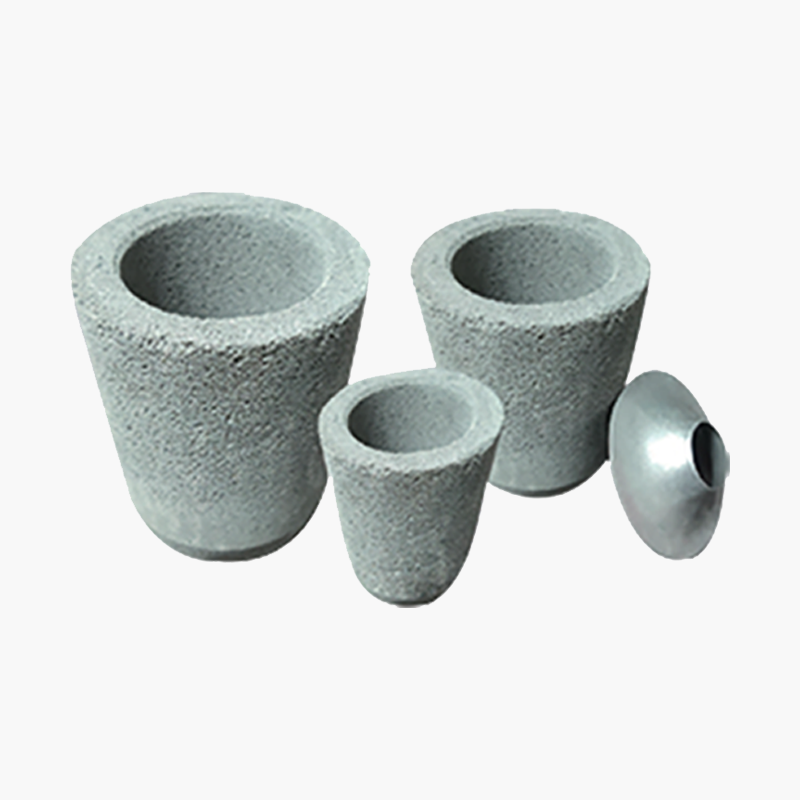

HP High Strength Riser

HP High Strength riser are available with the traditional "cup-shaped” and blind, which has good versatility.It is a mainly solution suitable for the application of traditional (XP) risers in high-pressure molding lines, and can also be applied to resin sand molding process.
SKU:
Availability:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HP

  • SIANBEI 托马斯&春秋

HP High Strength riser are available with the traditional "cup-shaped” and blind, which has good versatility.It is a mainly solution suitable for the application of traditional (XP) risers in high-pressure molding lines, and can also be applied to resin sand molding process.

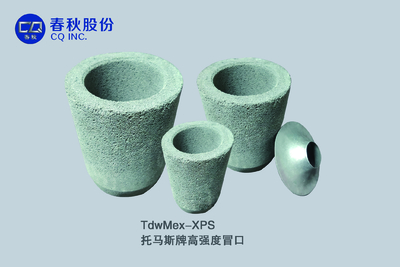

HP series high strength riser


1.Benefits of HP Mini Riser:

◎ HP risers has a compressive capacity of more than 7MP, which can fully withstand the maximum pressure of the high-pressure molding line;

◎ The HP risers formulation is a highly exothermic mixture, and the feeding effect is as high as 70%, which greatly improves the product yield;

◎ The risers do not directly contact the casting, which will not affect the metallographic structure of the casting;

◎ The riser can be placed flexibly, which can effectively solve the internal defects of the isolated hot spot of the casting.




2. Flexible formulations:

1. HPS high-strength inorganic risers can be produced with high exothermic and insulation formulation;

2. HPS fluorine-free and carbon-free risers can be produced with fluorine-free and carbon-free formulation;


3. Rich spare parts:

1. Standard P sand breaker core;

2. Provide HJ metal breaker core for special needs;




4.Packaging, transportation and storage:

Keep the package intact, store in a cool and dry place, prevent moisture absorption, and keep away from open flames;

Prohibit the use of  water for fire fighting;



HP series high strength riser


General parameter table

model

modulus

Height mm (excluding easy-cut pieces)

diametermmmax

HP35

1.0

49

53

HP40

1.2

71.5

62.5

HP50

1.5

80

73.5

HP60

1.7

90

80

HP70

2.0

99

94

HP80

2.25

108

102

HP90

2.50

120

115

HP100

2.80

133

127

HP110

3.00

140

138

HP120

3.20

150

155

HP140

3.80

170

165

*This table only lists the standard models of this series of risers.With the increase of molds, new models will be added at any time.
