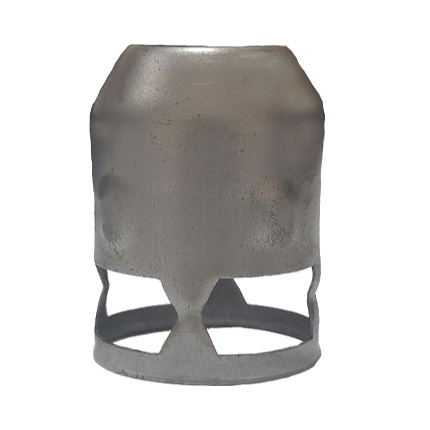

DYSeries of sand mold easy to cutIt is our 'self-shrinkable''multi-stage deformation and pressure bearing' special technical design and production, suitable forHD/XDSeries High Strength Mini Riser.When stressed on the styling lineDYThe series of easy-cut pipes are deformed by themselves, which can effectively protect the riser and prevent slag drop.It can also scientifically separate the distance between the riser body and the casting to avoid the fish-eye phenomenon at the root of the riser.
| PDF Export | |
DY
SIANBEI 托马斯&春秋
1. Parameter table of DY series sand mold easy-cutting piece
This series of metal easy-cut pieces are designed and produced by our special technology 'self-retractable''multi-stage deformation and pressure', and are suitable for HD/XD series high-strength mini risers.When pressed on the molding line, the EDY series easy-cut tube deforms itself, which can effectively protect the riser and prevent slag.It can also scientifically separate the distance between the riser body and the casting to avoid the fish-eye phenomenon at the root of the riser.
model | high | Upper mouth diameter | Diameter of lower mouth | Scalability | Adapt to the riser |
DY30/20 | 50 | 30 | 20 | 30 | |
DY40/20 | 50 | 40 | 20 | 30 | |
DY50/20 | 50 | 50 | 20 | 30 | |
| DY55/31 | 50 | 50 | 31 | 30 | |
*This table only lists the standard models of this series of risers.With the increase of molds, new models will be added at any time. | |||||
1. Parameter table of DY series sand mold easy-cutting piece
This series of metal easy-cut pieces are designed and produced by our special technology 'self-retractable''multi-stage deformation and pressure', and are suitable for HD/XD series high-strength mini risers.When pressed on the molding line, the EDY series easy-cut tube deforms itself, which can effectively protect the riser and prevent slag.It can also scientifically separate the distance between the riser body and the casting to avoid the fish-eye phenomenon at the root of the riser.
model | high | Upper mouth diameter | Diameter of lower mouth | Scalability | Adapt to the riser |
DY30/20 | 50 | 30 | 20 | 30 | |
DY40/20 | 50 | 40 | 20 | 30 | |
DY50/20 | 50 | 50 | 20 | 30 | |
| DY55/31 | 50 | 50 | 31 | 30 | |
*This table only lists the standard models of this series of risers.With the increase of molds, new models will be added at any time. | |||||
