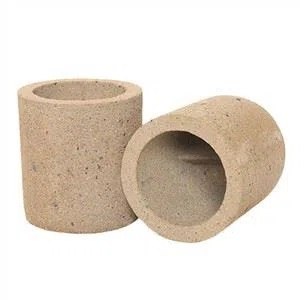

BP series heating fiber riser

This series of risers,Lightweight, breathable and versatile, has a variety ofDeformation and Alien Appearance ShapesFlexible and diverse process order, which can be applied to the needs of the vast majority of customers.
SKU:
Availability:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • tdwmex 2000B

  • SIANBEI 托马斯&春秋

This series of risers is light in weight, good in air permeability and good in versatility. It has a variety of deformed and special-shaped body shapes, and the process configuration is flexible and diverse, which can be applied to the needs of most customers.

one,The feeding system has the following features:

◎  This series of risers has good air permeability and can be applied to most clay sand and resin sand molding conditions;
◎
The deformed body of this series of risers is convenient for production, and is widely used in in-line casting conditions such as turbine castings;
◎
The special-shaped body of this series of risers can be placed flexibly, which can effectively solve the working condition of limited position of ball castings.

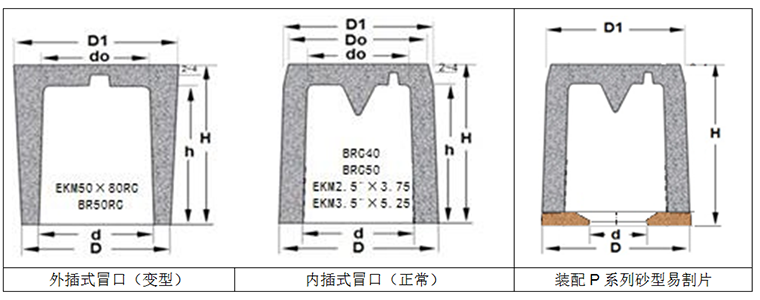

XPBP series heating riser


2. Flexible process features:

1. XP-type universal heating riser can be produced by using high-quality float beads and heating agent;

2. The cold core process can be used to produce precise XPL type risers with precise size requirements;

3. The XPD low gas volume riser can be produced by the low gas volume process;

4. The fluorine-free process can be used to produce XPF risers for high-end hydraulic parts customers;

5. The carbon-free and low-carbon process formula can be used to produce XPC-type carbon-free risers for stainless steel customers;

6. The fiber BP type heating insulation riser can be produced by the negative pressure suction filtration process;

7. For shell casting customers, we can produce reverse slope external in-line XPX/BPX external risers;

3. Spare parts:

1. StandardP seriesSand mold easy to cut

2. Provided for special installation requirementsHJ seriesMetal easy to cut



Fourth, packaging, transportation, storage precautions

Keep the package intact, store in a cool and dry place, prevent moisture absorption, and keep away from open flames.

Fire-fighting measures: isolate the riser that catches fire, use dry powder fire extinguisher in case of small fire; use foam fire extinguisher in case of large fire, and prohibit the use of water-based fire extinguisher.

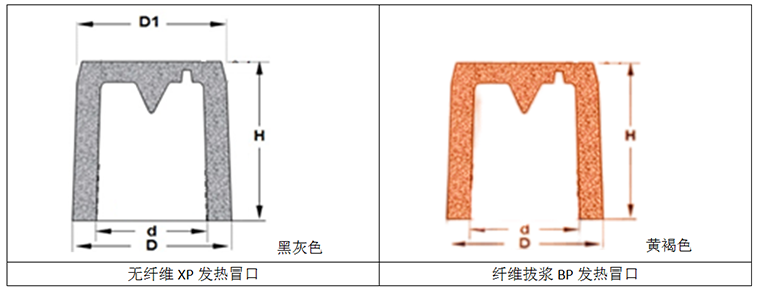

XPBP series heating riser


General parameter table (length unit is mm)

model

modulus

H

D

D1

d

Packaging Specifications

XP/BP-2/5

0.7

50

40.5

38

24.5

24000

XP/BP-3.5/5

1.0

49

53

50

36

11550

XP/BP-4/6

1.1

65

56

54

38

7000

XP/BP-4/7

1.2

71.5

62.5

59

41.5

5400

XP/BP-5/8

1.5

80

73.5

70

52

3800

XP/BP-6/9

1.7

91

80

75

57.5

2800

XP/BP-7/10

2.0

99

94

90

70

1800

XP/BP-8/11

2.25

108

102

99

79

1400

XP/BP-9/12

2.50

120

115

110

89

975

XP/BP-10/13

2.80

133

127

120

97

840

XP/BP-11/14

3.00

140

138

130

108

660

XP/BP-12/15

3.20

150

155

145

118

450

XP/BP-14/17

3.80

169

180

171

139

270

*This table only lists the standard models of this series of risers.With the increase of molds, new models will be added at any time.

*Packaging specifications according to1.7Counting the number of risers for the Migao standard tray.
